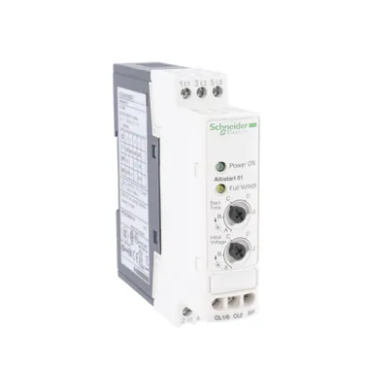

سافت استارتر 3 – 0.75 کيلو وات 6 آمپر اشنایدر ATS01N106FT
سافت استارتر 3 – 0.75 کيلو وات 6 آمپر اشنایدر ATS01N106FT
| Range of Product | Altistart 01 |
|---|---|
| Product or Component Type | Soft starter |
| Product destination | Asynchronous motors |
| Product Specific Application | Simple machine |
| Device short name | ATS01 |
| Phase | 1 phase |
| [Us] rated supply voltage | 110…480 V – 10…10 % |
| Motor power kW | 3 kW, 3 phase 400 V 0.75 kW, 3 phase 230 V 1.1 kW, 3 phase 230 V 2.2 kW, 3 phase 400 V 0.75 kW, 1 phase 230 V |
| Maximum Horse Power Rating | 1 hp, 3 phase 230 V 2 hp, 3 phase 460 V 3 hp, 3 phase 460 V 0.5 hp, 3 phase 210 V 1.5 hp, 3 phase 230 V |
| IcL starter rating | 6 A |
| Utilisation category | AC-53B EN/IEC 60947-4-2 |
| Current consumption | 30 A at nominal load |
| Type of start | Start with voltage ramp |
| Power dissipation in W | 1 W at full load and at end of starting 31 W in transient state |
| Assembly style | With heat sink |
|---|---|
| Function Available | Integrated bypass |
| Supply voltage limits | 99…528 V |
| Supply frequency | 50…60 Hz – 5…5 % |
| Network Frequency | 47.5…63 Hz |
| Output voltage | <= power supply voltage |
| [Uc] control circuit voltage | 110 V AC +/- 10 % 30 mA 24 V AC/DC +/- 10 % 25 mA 240 V AC +/- 10 % 65 mA |
| Starting time | 1 s / 100 5 s / 20 Adjustable from 1 to 5 s |
| Starting torque | 30…80 % of starting torque of motor connected directly on the line supply |
| Discrete output current | 2 A DC-13 3 A AC-15 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) |
| Electrical connection | Cage type connector – rigid 1 2.5 mm² AWG 14 control circuit Cage type connector – rigid with cable end 1 2.5 mm² AWG 14 power circuit Cage type connector – rigid without cable end 2 1 mm² AWG 17 control circuit Cage type connector – rigid without cable end 2 1 mm² AWG 17 power circuit Cage type connector – flexible with cable end 1 2.5 mm² AWG 14 control circuit Cage type connector – flexible with cable end 1 2.5 mm² AWG 14 power circuit Cage type connector – flexible without cable end 1 2.5 mm² AWG 14 control circuit Cage type connector – flexible without cable end 1 2.5 mm² AWG 14 power circuit Cage type connector – flexible with cable end 2 0.75 mm² AWG 18 control circuit Cage type connector – flexible with cable end 2 0.75 mm² AWG 18 power circuit Cage type connector – flexible without cable end 2 1 mm² AWG 17 control circuit Cage type connector – flexible without cable end 2 1 mm² AWG 17 power circuit |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 3.9 in (100 mm) |
| Width | 0.9 in (23 mm) |
| Depth | 3.9 in (100 mm) |
| Net Weight | 0.35 lb(US) (0.16 kg) |
| Compatibility code | ATS01N1 |
| Motor power range AC-3 | 0.55…1 kW 200…240 V 3 phase 1.1…2 kW 380…440 V 3 phase 0.55…1 kW 200…240 V 1 phase 1.1…2 kW 200…240 V 3 phase 2.2…3 kW 380…440 V 3 phase |
| Motor starter type | Soft starter |
| Electromagnetic compatibility | Conducted and radiated emissions level B conforming to CISPR 11 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 EMC immunity level 3 conforming to EN 50082-1 EMC immunity level B conforming to EN 50082-2 Harmonics level 3 conforming to IEC 1000-3-2 Harmonics level 3 conforming to IEC 1000-3-4 Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11 Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| Standards | EN/IEC 60947-4-2 |
| Product Certifications | C-tick CCC CSA UL GOST |
| IP Degree of Protection | IP20 |
| Pollution degree | 2 EN/IEC 60947-4-2 |
| Vibration resistance | 1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation or dripping water EN/IEC 60068-2-3 |
| Ambient air temperature for operation | 14…104 °F (-10…40 °C) (without derating) 104…122 °F (40…50 °C) (with current derating of 2 % per °C) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) EN/IEC 60947-4-2 |
| Operating altitude | <= 3280.84 ft (1000 m) without derating > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m |
| Category | US10I1122392 |
|---|---|
| Discount Schedule | 0I11 |
| GTIN | 3389110667141 |
| Returnability | Yes |
| Country of origin | DE |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.98 in (2.5 cm) |
| Package 1 Width | 4.06 in (10.3 cm) |
| Package 1 Length | 4.13 in (10.5 cm) |
| Package 1 Weight | 6.3 oz (178.0 g) |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 5.91 in (15.0 cm) |
| Package 2 Width | 11.81 in (30.0 cm) |
| Package 2 Length | 15.75 in (40.0 cm) |
| Package 2 Weight | 14.804 lb(US) (6.715 kg) |
| Warranty | 18 months |
|---|
