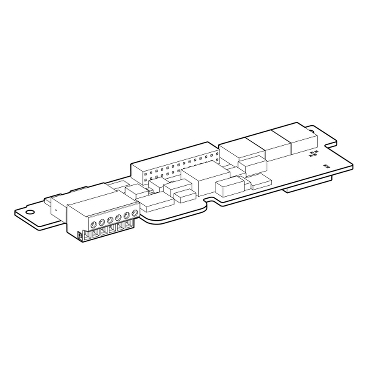

کارت انکودر 24 ولت اشنایدر VW3A3407
کارت انکودر 24 ولت اشنایدر VW3A3407
| Range of product | Altivar |
|---|---|
| Product or component type | Encoder interface card |
| Range compatibility | Altivar 61Q Altivar 71Q Altivar 71 Altivar 61 Altivar Lift |
| Discrete output type | Push-pull |
| [Us] rated supply voltage | 24 V DC (voltage limits: 20…30 V) |
| Number of pulses per revolution | 10000 for ATV71H……383 5000 for all ATV61 drives 5000 for ATV71H…M3 5000 for ATV71H…M3X 5000 for ATV71H…N4 |
| Maximum supply current | 0.175 A |
|---|---|
| Protection type | Overload protection Short-circuit protection |
| Maximum cable distance between devices | 500 m |
| Maximum operating frequency | 300 kHz |
| Input signal | A B Compliment of A Compliment of B/AB/A |
| Input impedance | 1000 Ohm |
| Voltage state 0 guaranteed | <= 1.5 V |
| Voltage state 1 guaranteed | > 11.5…< 25 V |
| Electrical connection | Terminal, connection capacity: 0.2 mm² (AWG 24) <500 m cable length, encoder, 100 mA at 14 V |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 142.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.503 kg |
| Warranty | 18 months |
|---|
