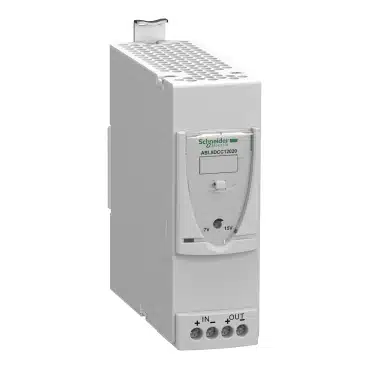

ماژول مبدل 24 تا 28.8 ولت DC به 12 ولت DC اشنایدر ABL8DCC12020
ماژول مبدل 24 تا 28.8 ولت DC به 12 ولت DC اشنایدر ABL8DCC12020
| Range of Product | Phaseo Universal |
|---|---|
| Product or Component Type | Converter module |
| Kw Rating | 24 W |
| Input voltage | 24…28.8 V DC |
| Output voltage | 12 V DC |
| Power supply output current | 2 A |
| Input voltage limits | 22…30 V |
|---|---|
| Efficiency | 82 % |
| Power dissipation in W | 4 W |
| Input protection type | Against reverse polarity |
| Output voltage limits | 7…15 V |
| Line and load regulation | 1…3 % |
| Residual ripple | <= 100 mV |
| Output protection type | Against overload, protection technology: automatic reset Against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset Against short-circuits, protection technology: automatic reset |
| Connections – terminals | For input connection: screw type terminals, connection capacity: 2 x 0.5…2 x 4 mm² AWG 24…AWG 10 For output connection: screw type terminals, connection capacity: 2 x 0.5…2 x 4 mm² AWG 24…AWG 10 |
| Fixing mode | By clips 35 mm symmetrical DIN rail horizontal By clips 35 mm symmetrical DIN rail vertical |
| Operating altitude | 6561.68 ft (2000 m) |
| Name of test | Induced electromagnetic field conforming to IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Surge conforming to IEC 61000-4-5 level 2 Conducted/radiated emissions conforming to EN 55022 Class B Electrostatic discharges conforming to IEC 61000-4-2 Emission conforming to IEC 61000-6-3 |
| Local signalling | for output voltage (> 6 V) 1 LED (green) |
| Net Weight | 0.7 lb(US) (0.3 kg) |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| ambient air temperature for operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 0…90 % during operation 0…95 % during storage |
| Overvoltage category | Class 3 |
| Vibration resistance | 2 gn (f= 11.9…150 Hz) conforming to IEC 61131-2 3.5 mm (f= 3…11.9 Hz) conforming to IEC 61131-2 |
| Dielectric strength | 500 V between input and ground 500 V between input and output 500 V between output and ground |
| Product Certifications | RCM EAC cCSAus UL |
| Environmental characteristic | EMC conforming to EN 50081-1 EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 Safety conforming to IEC 60950-1 Safety conforming to IEC 61204 |
| Category | US1CP1222525 |
|---|---|
| Discount Schedule | CP12 |
| GTIN | 3389119406895 |
| Returnability | No |
| Country of origin | PH |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.56 in (6.500 cm) |
| Package 1 Width | 5.71 in (14.500 cm) |
| Package 1 Length | 6.50 in (16.500 cm) |
| Package 1 Weight | 21.199 oz (601.000 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 15.75 in (40.000 cm) |
| Package 2 Length | 23.62 in (60.000 cm) |
| Package 2 Weight | 26.810 lb(US) (12.161 kg) |
| Warranty | 18 months |
|---|
