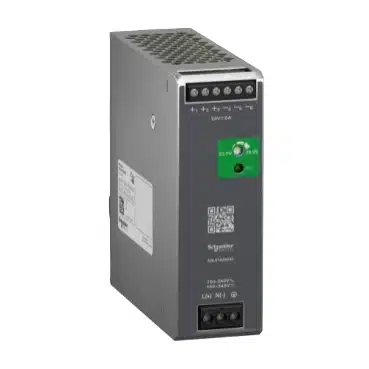

منبع تغذیه ولتاژ ورودی 100 تا 240 ولت AC و خروجی 5 آمپر اشنایدر ABLS1A24050
منبع تغذیه ولتاژ ورودی 100 تا 240 ولت AC و خروجی 5 آمپر اشنایدر ABLS1A24050
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Optimized |
| Enclosure Material | Aluminum |
| Nominal input voltage | 100…240 V AC single phase 100…240 V AC phase to phase 140…340 V DC |
| Kw Rating | 120 W |
| Output voltage | 24 V DC |
| Power supply output current | 5 A |
| Efficiency at full load | 85…264 V AC without temperature derating 120…375 V DC without temperature derating |
|---|---|
| Nominal network frequency | 50…60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 4 A External protection (recommended) 20 A Curve C External protection (recommended) 13 A Curve C |
| Inrush current | 30.0 A 115 V 60.0 A 230 V |
| Power factor | 0.55 at 115 V AC 0.45 at 230 V AC |
| Efficiency | 85 % 115 V AC 88 % 230 V AC |
| Output voltage adjustment | 22…28 V |
| Power dissipation in W | 25 W |
| Current consumption | < 2.5 A 115 V AC < 1.4 A 230 V AC < 1.3 A 140 V DC |
| Turn-on time | < 1 s |
| Holding time | > 20 ms 115 V AC > 40 ms 230 V AC |
| Startup with capacitive loads | 8000 µF |
| Residual ripple | < 120 mV |
| Meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections – terminals | Screw connection 0.5…4 mm², AWG 20…AWG 12) without wire end ferrule output Screw connection 0.5…2.5 mm², AWG 20…AWG 14) with wire end ferrule output Screw connection 0.75…4 mm², AWG 18…AWG 12) without wire end ferrule input Screw connection 0.75…4 mm², AWG 18…AWG 12) with wire end ferrule input |
| Line and load regulation | < 0.5 % network 0 to 100 % load at 77 °F (25 °C) < 1 % network full voltage range in line at 77 °F (25 °C) |
| Status LED | 1 LED (Green) output voltage |
| Depth | 4.6 in (117.6 mm) |
| Height | 4.9 in (123.6 mm) |
| Width | 1.6 in (40 mm) |
| Net Weight | 1.21 lb(US) (0.55 kg) |
| Output coupling | Parallel Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3000 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
| Standards | IEC 62368-1 EN/IEC 61204-3 IEC 61000-6-1 IEC 61000-6-2 IEC 61000-6-3 IEC 61000-6-4 IEC 61000-3-2 EN 61000-3-3 UL 62368-1 CSA C22.2 No 62368-1 UL 508 CSA C22.2 No. 107.1 EN/IEC 62368-1 |
|---|---|
| Product certifications | CE CUL Listed CUL Recognized RCM CB Scheme EAC KC |
| Operating altitude | < 5000 m |
| Shock resistance | 150 m/s² 11 ms |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -4…14 °F (-20…-10 °C) with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m) 14…104 °F (-10…40 °C) without derating mounting position A 115 V AC < 6561.68 ft (2000 m) 14…122 °F (-10…50 °C) without derating mounting position A 230 V AC < 6561.68 ft (2000 m) 104…158 °F (40…70 °C) with current derating of 1.67 % per °C mounting position A 115 V AC < 6561.68 ft (2000 m) 122…158 °F (50…70 °C) with current derating of 2.5 % per °C mounting position A 230 V AC < 6561.68 ft (2000 m) |
| Electrical shock protection class | Class I |
| pollution degree | 2 |
| Vibration resistance | 3 mm (f= 2…9 Hz) conforming to IEC 60068-2-6 10 m/s² (f= 9…200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic immunity | Immunity to electrostatic discharge – test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 Immunity to electrostatic discharge – test level: 15 kV (air discharge) conforming to IEC 61000-4-2 Immunity to conducted RF disturbances – test level: 15 V/m (80 MHz…2 GHz) conforming to IEC 61000-4-3 Immunity to conducted RF disturbances – test level: 5 V/m (2…2.7 GHz) conforming to IEC 61000-4-3 Immunity to conducted RF disturbances – test level: 5 V/m (2.7…6 GHz) conforming to IEC 61000-4-3 Immunity to fast transients – test level: 4 kV (on input-output) conforming to IEC 61000-4-4 Surge immunity test – test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 Surge immunity test – test level: 3 kV (between phases) conforming to IEC 61000-4-5 Immunity to conducted RF disturbances – test level: 15 V (0.15…80 MHz) conforming to IEC 61000-4-6 Immunity to magnetic fields – test level: 30 A/m (50…60 Hz) conforming to IEC 61000-4-8 Immunity to voltage dips conforming to IEC 61000-4-11 Disturbing field emission conforming to EN 55016-2-3 Limits for harmonic current emissions conforming to IEC 61000-3-2 conforming to EN 55016-1-2 conforming to EN 55016-2-1 |
| Electromagnetic emission | Conducted emissions IEC 61000-6-3 Radiated emissions IEC 61000-6-4 |
| Category | US1CP1222525 |
|---|---|
| Discount Schedule | CP12 |
| GTIN | 3606481500236 |
| Returnability | Yes |
| Country of origin | TH |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.97 in (5.000 cm) |
| Package 1 Width | 6.89 in (17.500 cm) |
| Package 1 Length | 7.09 in (18.000 cm) |
| Package 1 Weight | 24.550 oz (696.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 13 |
| Package 2 Height | 11.81 in (30.000 cm) |
| Package 2 Width | 11.81 in (30.000 cm) |
| Package 2 Length | 15.75 in (40.000 cm) |
| Package 2 Weight | 20.873 lb(US) (9.468 kg) |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 312 |
| Package 3 Height | 41.34 in (105.000 cm) |
| Package 3 Width | 31.50 in (80.000 cm) |
| Package 3 Length | 47.24 in (120.000 cm) |
| Package 3 Weight | 555.565 lb(US) (252.000 kg) |
