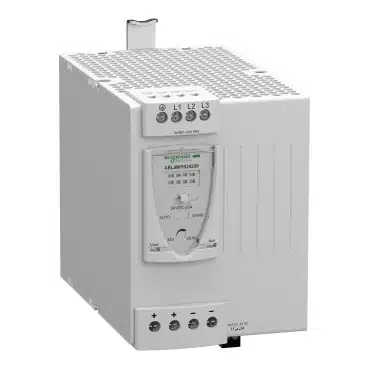

منبع تغذیه ولتاژ ورودی 380 تا 500 ولت و خروجی 20 آمپر اشنایدر
منبع تغذیه ولتاژ ورودی 380 تا 500 ولت و خروجی 20 آمپر اشنایدر
| Range of Product | Modicon Power Supply |
|---|---|
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 380…500 V AC three phase L1, L2, L3 |
| Kw Rating | 480 W |
| Output voltage | 24 V DC |
| Power supply output current | 20 A |
| Permissible temporary current boost | 1.5 x In for 4 s) |
| Anti-harmonic filter | Low frequency harmonic currents |
| Efficiency at full load | 320…550 V AC |
|---|---|
| Inrush current | 25 A |
| Power factor | 0.65 at 24 V DC |
| Efficiency | 92 % |
| Output voltage adjustment | 24…28.8 V adjustable |
| Power dissipation in W | 38.4 W |
| Provided equipment | Power factor correction filter IEC 61000-3-2 |
| Output protection type | Against overload, protection technology: manual or automatic reset Against overvoltage, protection technology: 30…32 V, manual reset Against short-circuits, protection technology: manual or automatic reset Against undervoltage, protection technology: tripping if U < 21.6 V Thermal, protection technology: automatic reset |
| Connections – terminals | Removable screw terminal block 2 x 2.5 mm², diagnostic relay Screw type terminals 3 x 0.5…3 x 4 mm², AWG 22…AWG 12) input connection Screw type terminals 1 x 0.5…1 x 4 mm², AWG 22…AWG 12) input ground connection Screw type terminals 4 x 0.5…4 x 10 mm², AWG 22…AWG 8) output connection |
| Status LED | 1 LED (green and red) output voltage 1 LED (green, red and orange) output current |
| Depth | 6.3 in (160 mm) |
| Height | 5.6 in (143 mm) |
| Width | 3.8 in (96 mm) |
| Net Weight | 3.5 lb(US) (1.6 kg) |
| Output coupling | Series Parallel |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3500 V with between input and ground 4000 V with between input and output 500 V with between output and ground |
| Standards | CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 |
|---|---|
| Product certifications | CCSAus EAC UL RCM |
| Environmental characteristic | EMC conforming to IEC 61000-6-1 EMC conforming to IEC 61000-6-3 EMC conforming to EN 55024 EMC conforming to IEC 61000-6-4 EMC conforming to EN/IEC 61204-3 Safety conforming to EN 61204-4 Safety conforming to IEC 60950-1 |
| Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | 122…140 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m) -13…122 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m) |
| Category | US1CP1222525 |
|---|---|
| Discount Schedule | CP12 |
| GTIN | 3389119405645 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.12 in (13.000 cm) |
| Package 1 Width | 6.30 in (16.000 cm) |
| Package 1 Length | 7.40 in (18.800 cm) |
| Package 1 Weight | 4.729 lb(US) (2.145 kg) |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 45 |
| Package 2 Height | 29.53 in (75.000 cm) |
| Package 2 Width | 23.62 in (60.000 cm) |
| Package 2 Length | 31.50 in (80.000 cm) |
| Package 2 Weight | 242.950 lb(US) (110.200 kg) |
| Warranty | 18 months |
|---|
