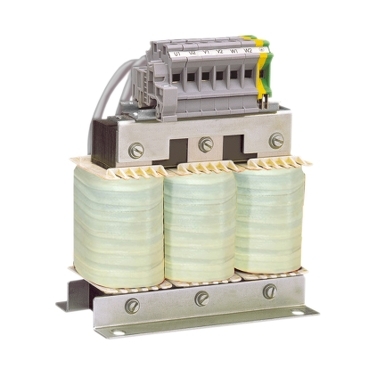

چوک موتور 314 آمپر اشنایدر VW3A5105
چوک موتور 314 آمپر اشنایدر VW3A5105
| Product or component type | Motor choke |
|---|---|
| Range compatibility | Altivar 71Q Altivar 61Q Altivar 61 Altivar 71 |
| Product specific application | Output filter |
| [In] rated current | 314 A |
| Product compatibility | ATV61HC11N4 ATV61HC13N4 ATV61HC20Y ATV61HC25Y ATV61HD55M3X ATV61HD75M3X ATV61QC13N4 ATV61QC16N4 ATV61QC16Y ATV61QC20Y ATV71HC11N4 ATV71HC13N4 ATV71HC16Y ATV71HC20Y ATV71HD55M3X ATV71HD75M3X ATV71QC11N4 ATV71QC13N4 ATV71QC13Y ATV71QC16Y |
| nedded quantity | 3 |
| Electrical connection | Tag connector M10 |
| Maximum motor cable length | 150 m shielded cable P motor 55…75 kW at 200…240 V 1 300 m unshielded cable P motor 55…75 kW at 200…240 V 1 150 m shielded cable P motor 110…132 kW at 380…480 V 1 250 m unshielded cable P motor 110…132 kW at 380…480 V 1 150 m shielded cable P motor 160…250 kW at 500…690 V 1 250 m unshielded cable P motor 160…250 kW at 500…690 V 1 250 m shielded cable P motor 160…250 kW at 500…690 V 2 400 m unshielded cable P motor 160…250 kW at 500…690 V 2 |
|---|---|
| dv/dt | 500 V/µs max at 400 V 750 V/µs max at 500 V 1000 V/µs max at 690 V |
| Thermal losses | 475 W |
| maximum drive output frequency | 100 Hz |
| Ambient air temperature for operation | -10…50 °C |
| Net weight | 32 kg |
| IP degree of protection | IP20 (with kits VW3A9612,613) IP00 |
|---|---|
| Ambient air temperature for storage | -25…70 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 47 cm |
| Package 1 Width | 39 cm |
| Package 1 Length | 59 cm |
| Package 1 Weight | 38 kg |
| Warranty | 18 months |
|---|
